Hazloc - HHP2 Heater

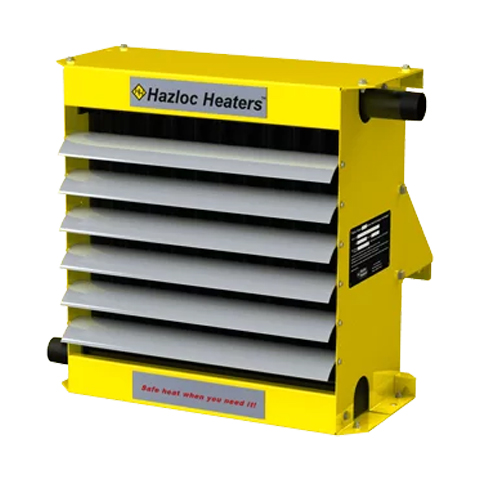

HAZLOC – HHP2 – Hydronic High Performance Heater

Vector CAG - Hazloc Heaters Logo

The HHP2 series offers you the highest pressure rating, horizontal and vertical projection types, multiple discharge types, and the most connection type choices of all our hydronic heater models. It is designed for the most rugged industrial applications in steam, hot water, glycol or other fluid circulating heating systems. The HHP2 series is designed for pressures and temperatures up to 450 psi and 550° F respectively. HHP2 heaters include our PerformaCore™ high-performance heat-exchanger cores that are available in 5/8 in. O.D. 16-gauge (0.065 in.) fin tube with single-pass (for steam or fluids and multi-pass configurations (for fluids only) to meet your specific requirements. HHP2 heaters meet ASME requirements with a National CRN.

HHP2 heaters are suitable for a wide variety of heating fluids and are perfect for steam, hot water, or glycol applications. They are also used with other non-lethal or non-poisonous fluids (as defined by ASME) for both space heating and liquid cooling applications that include but are not limited to hot-oil heaters, lube-oil coolers, product process coolers, pumpseal coolers, etc. They are also available with either General Purpose or Explosion-proof electric motors.

Learn more here: https://www.hazlocheaters.com/products/heaters/hhp2-hydronic-high-performance-heater/

REQUEST A QUOTE

PRODUCT DESCRIPTION:

General Information

Designed for operating pressures up to 450 PSIG (3103 kPa)! All Hazloc HeatersTM HHP2 models are designed to ASME requirements for applications with maximum operating pressures up to 450 PSIG (3103 kPa). The five sizes of HHP2 heaters include our PerformaCoreTM high-performance heat-exchanger cores that are available in 16 model choices of 5/8 in. O.D. fin tube with single-pass (for steam or fluids) and multi-pass configurations (for fluids only) to meet your specific requirements. Vertical projection models are available in 12 inch to 24 inch fan size models only.

HHP2 heaters are suitable for a wide variety of heating fluids and are perfect for steam, hot water, or glycol applications. They are also used with other non-lethal or non-poisonous fluids (as defined by ASME) for both space heating and liquid cooling applications that include but are not limited to hot-oil heaters, lube-oil coolers, product process coolers, pump-seal coolers, etc.

Applications

Rugged design, but easily maintained! All HHP2 heaters are designed for industrial applications with all features being heavy-duty to meet your
most demanding environments and long-life expectations. Even with heavy-gauge steel construction used throughout the heater it does not inhibit maintenance of the product since all cabinet panels are easily removed.

Interchangeable with other brands of heaters! Some of Hazloc HeatersTM HHP2 series models are designed with cabinet dimensions and mounting holes equivalent to a major competitor’s heaters making them easily interchangeable. Furthermore, our rugged HHP PerformaCoreTM replacement cores are also designed to slide into equivalent sizes of their heaters. An added benefit is our 18-month heater warranty!

Maximum durability… rugged fin tubes! All HHP2 PerformaCoreTM heat-exchanger cores are constructed using rugged 16-gauge (0.065 in.) carbon-steel tubes with copper-free, tension-wound aluminum fins and carbon-steel headers for maximum durability, resistance to corrosion, and longer life in your demanding applications.
