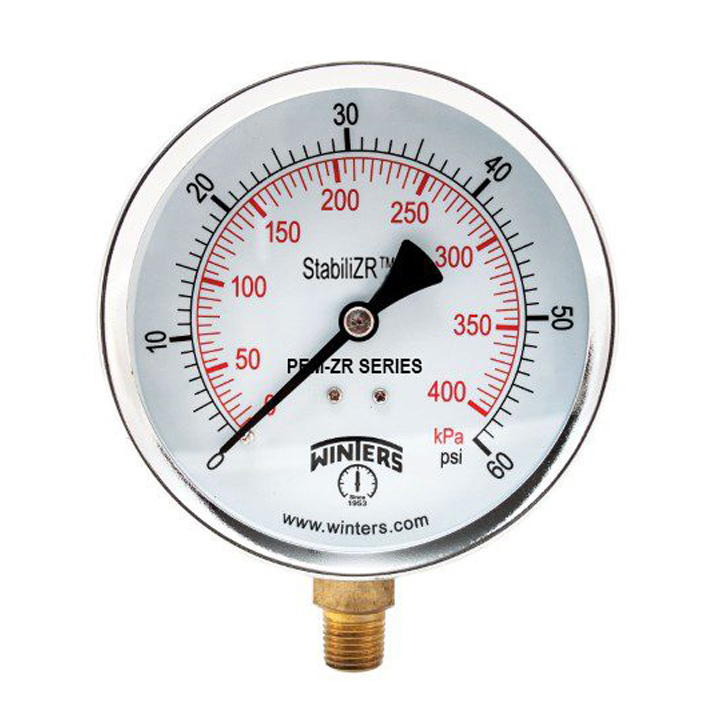

Winters Instruments – StabiliZR Gauges
$1.00
StabiliZR gauges are dry gauges that come with a StabiliZR dampened movement that eliminates pointer flutter caused by vibration and pulsation. With the StabiliZR you get the performance of a liquid filled gauge without the problems that are often associated with a liquid filled gauge. Winters offers the StabiliZR option with our PFQ, PFP, and PPC gauges.
Learn more here:
https://winters.com/search?q=stabiliZR
https://winters.com/products-and-services/pressure/pressure-gauges/d72b26de-874c-4c12-a534-cb6739361203
PFP Gauges
DESCRIPTION & FEATURES
- StabiliZR®️ dampened movement minimizes effect of pulsation and vibration as effectively as liquid filled gauges
- Restrictor screw standard on dual scale (optional on single scale)
- Stainless steel case
- Under and overload stops (4” and 6”)
- Back, bottom or panel mounted
- 316L SS wetted parts
- ASME B40.100 compliant (EN837-1 available)
- CRN registered
- 5 year warranty
Applications
- Outdoor and severe ambient and process conditions
- Use where harmful vibration and pulsation are present
- Hydraulic equipment, oil field equipment, pumps, compressors and process industries
PFQ Gauges
DESCRIPTION & FEATURES
- StabiliZR® dampened movement minimizes effects of pulsation and vibration without liquid filling (flutterless pointer)
- Restricted orifice standard on dual scale
- Crimp-on bezel
- Brass internals
- Dual scale (psi/kPa)
- U-Clamps and front flanges for panel mounting
- ASME B40.100 compliant (EN837-1 available)
- CRN registered
- 5 year warranty
Applications
- Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments
- Use where harmful vibration and pulsation are present
PPC Gauges
DESCRIPTION & FEATURES
- StabiliZR®️ dampened movement minimizes effects of pulsation and vibration as effectively as liquid filled gauges
- Solid phenolic front and polypropylene pressure relief back safety case
- ±0.5% accuracy
- Stainless steel full rotary movement
- Micrometer adjustable pointer for ease in calibration
- Under and overload stops
- 316L stainless steel or brass wetted parts standard
- Restricted orifice standard on dual scale (optional on single scale)
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
Applications
- Ideally suited for process, chemical, petroleum and power industries
- Suitable for non-clogging corrosive media
- Used where operator safety is a requirement
- Processes where pulsation and vibration exist
Additional information
| Manufacturer | Winters Instruments |
|---|---|
| Industry | Chemical and Petrochemical, Food and Beverage, Life Science, Oil and Gas, Power and Energy, Water and Wastewater |
| Segment | Instrumentation and Automation |
Winters Instruments – StabiliZR Gauges
StabiliZR gauges are dry gauges that come with a StabiliZR dampened movement that eliminates pointer flutter caused by vibration and pulsation. With the StabiliZR you get the performance of a liquid filled gauge without the problems that are often associated with a liquid filled gauge. Winters offers the StabiliZR option with our PFQ, PFP, and PPC gauges.
Learn more here:
https://winters.com/search?q=stabiliZR
https://winters.com/products-and-services/pressure/pressure-gauges/d72b26de-874c-4c12-a534-cb6739361203
PRODUCT DESCRIPTION:
PFP Gauges
DESCRIPTION & FEATURES
- StabiliZR®️ dampened movement minimizes effect of pulsation and vibration as effectively as liquid filled gauges
- Restrictor screw standard on dual scale (optional on single scale)
- Stainless steel case
- Under and overload stops (4” and 6”)
- Back, bottom or panel mounted
- 316L SS wetted parts
- ASME B40.100 compliant (EN837-1 available)
- CRN registered
- 5 year warranty
Applications
- Outdoor and severe ambient and process conditions
- Use where harmful vibration and pulsation are present
- Hydraulic equipment, oil field equipment, pumps, compressors and process industries
PFQ Gauges
DESCRIPTION & FEATURES
- StabiliZR® dampened movement minimizes effects of pulsation and vibration without liquid filling (flutterless pointer)
- Restricted orifice standard on dual scale
- Crimp-on bezel
- Brass internals
- Dual scale (psi/kPa)
- U-Clamps and front flanges for panel mounting
- ASME B40.100 compliant (EN837-1 available)
- CRN registered
- 5 year warranty
Applications
- Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments
- Use where harmful vibration and pulsation are present
PPC Gauges
DESCRIPTION & FEATURES
- StabiliZR®️ dampened movement minimizes effects of pulsation and vibration as effectively as liquid filled gauges
- Solid phenolic front and polypropylene pressure relief back safety case
- ±0.5% accuracy
- Stainless steel full rotary movement
- Micrometer adjustable pointer for ease in calibration
- Under and overload stops
- 316L stainless steel or brass wetted parts standard
- Restricted orifice standard on dual scale (optional on single scale)
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
Applications
- Ideally suited for process, chemical, petroleum and power industries
- Suitable for non-clogging corrosive media
- Used where operator safety is a requirement
- Processes where pulsation and vibration exist
