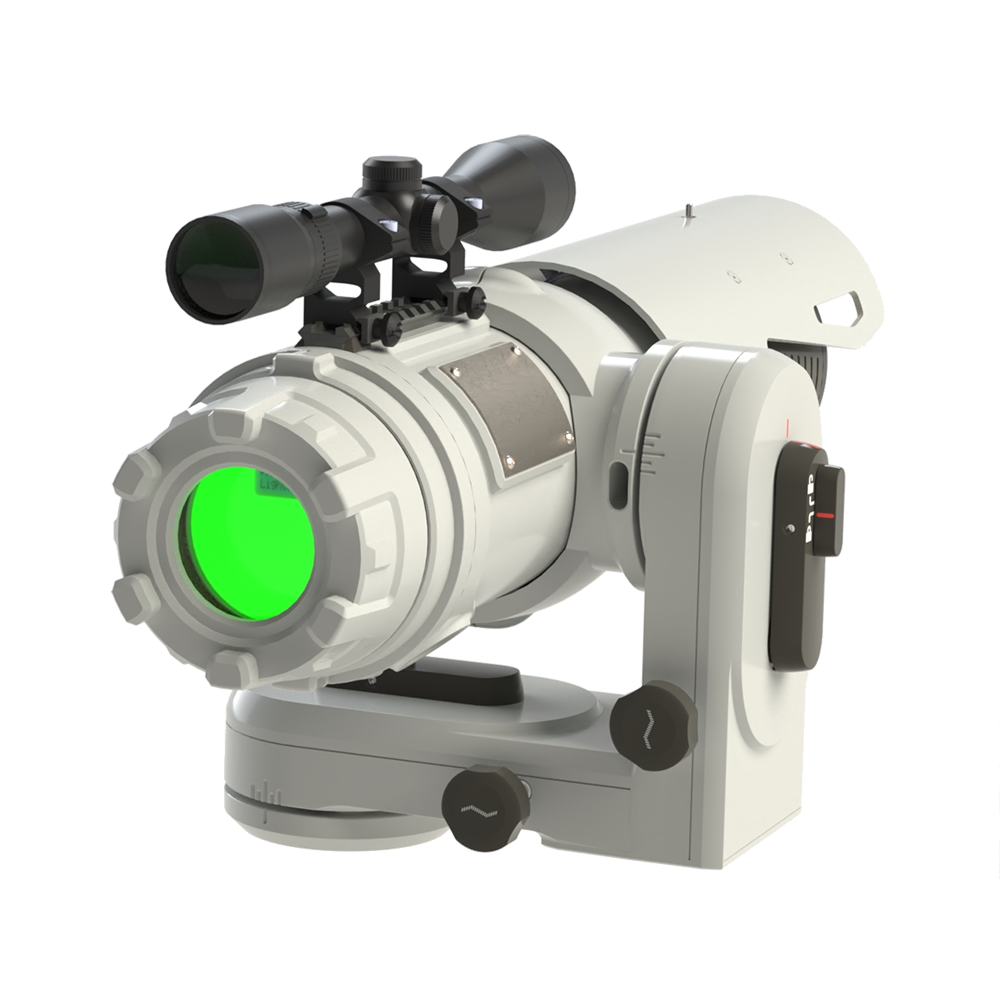

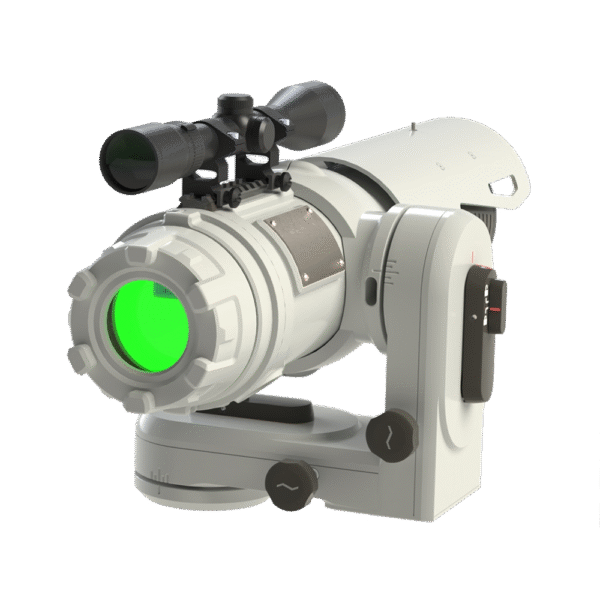

Boreal Laser – GasFinder-LoS
The GasFinder-LoS delivers ppm level, real-time measurements toxic and flammable gases without the need for calibration, bump testing, or regular maintenance. Built on Boreal Laser’s 30+ years of proven TDL technology, it offers continuous monitoring at path lengths up to 200 meters (650 ft) in a simple, all-in-one package.
Its smart failsafe design includes built-in diagnostics to ensure dependable performance. With outputs including HART enabled 4–20 mA, Modbus RTU, and dry contact relays, it integrates easily with control and safety systems.
From oil and gas and LNG to wastewater treatment, food & beverage, and semiconductors, the GasFinder-LoS is designed for industries where accuracy and uptime matter.
Learn more here: https://boreal-laser.com/products/gasfinder-line-of-sight/
PRODUCT DESCRIPTION:
Laser Based Open Path Gas Detection
All-in-One Open Path Gas Detection
Complete analyzer in a compact field device
Speed of Response
1 second results with no cross sensitivity
No Calibration or Bump Test Required
Automatic health and calibration check
Free of consumables
Reduce maintenance time and costs
Power + Communication
3 or 4 Wire 24 VDC Device
Polarity protected and internally fused
Analog, Relay, and MODBUS
HART7 4-20mA, dry contact relay, RS-485
Wireless Configuration
Configuration via wired handheld HMI (optional)
Continuous Onboard Logging
USB accessible data storage
Robust Alignment Mount
Intuitive Adjustment and Alignment
Knobs provide vertical and horizontal adjustment
Double-Action Locking Arms
Keep your detector in place and aligned
Diverse Mounting Options
Multi-directional wall and post mounting
Dust and Weather Tested
Proven performance in harsh environments

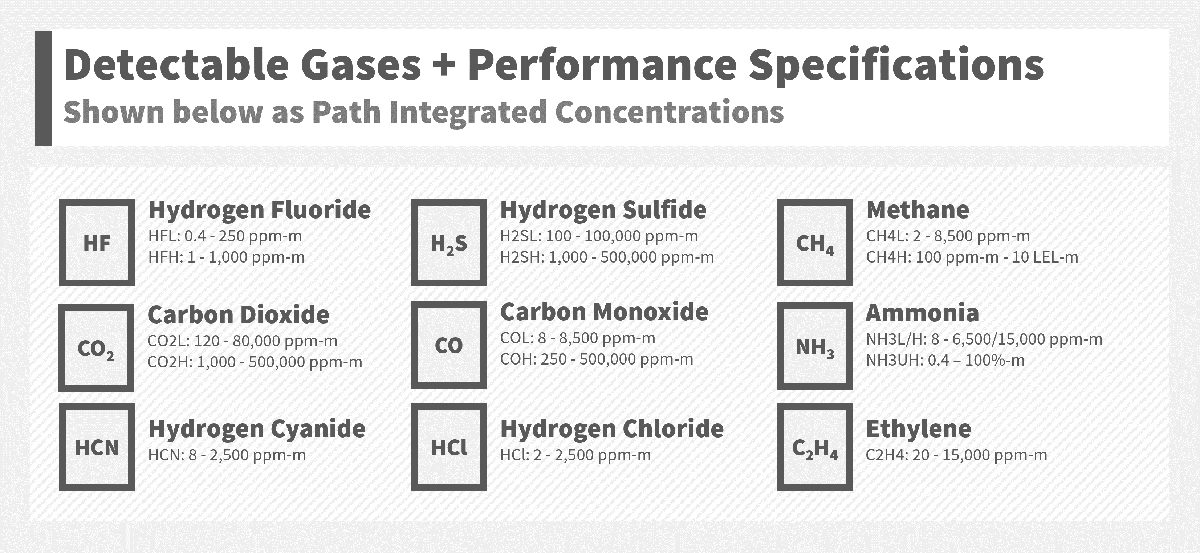

Target Gases
