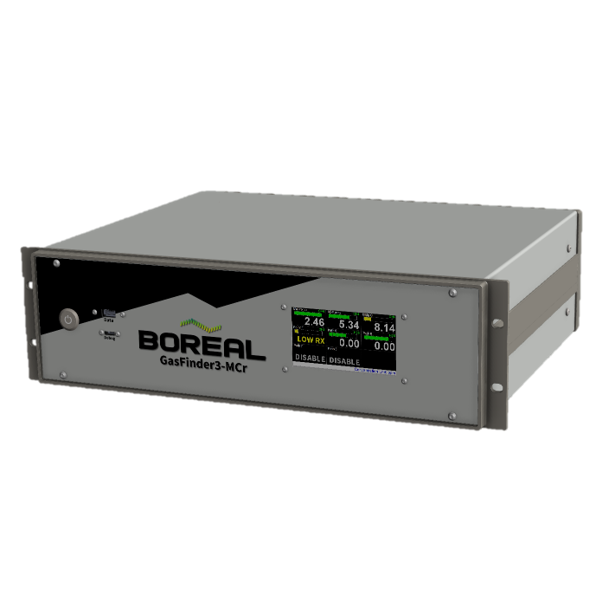

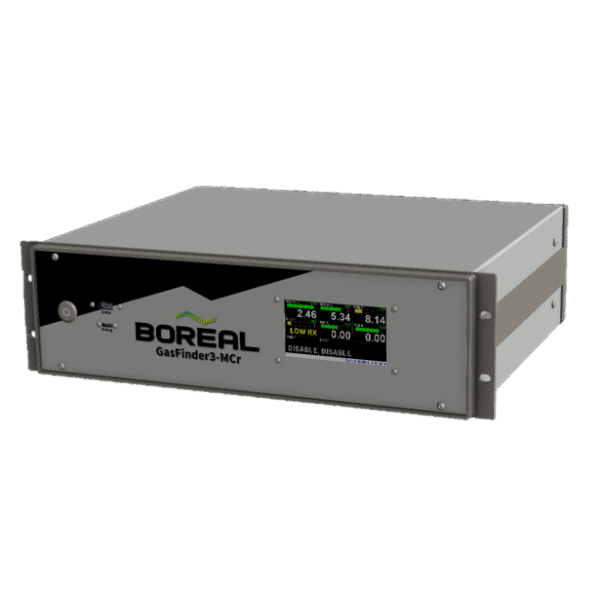

Boreal Laser – GasFinder3-MCr
The GasFinder3-MCr is a rack-mounted, multi-channel laser-based gas analyzer designed for reliable, real-time gas detection across complex industrial sites. It supports up to eight measurement heads including open-path, in situ, and extractive configurations, for scalable and flexible coverage.
It delivers ppm level, real-time measurements toxic and flammable gases with no calibration, bump testing, or routine maintenance required, making it ideal for critical applications that demand accuracy and low operational overhead. With outputs including 4–20 mA with HART, Modbus RTU, and dry contact relays, it integrates seamlessly into control and safety systems.
The GasFinder3-MCr is a drop-in replacement for legacy GasFinder2 systems, offering a seamless upgrade with modern features, enhanced diagnostics, and long-term platform support.
Learn more here: https://boreal-laser.com/products/gasfinder3-mcr/
PRODUCT DESCRIPTION:
Rack Mounted - Multi-Channel
Use for Hazardous Area Applications
(A)Ex ib IIC T5 Tamb <70°C Gb (C1 Div1, G: A,B,C,D)
Up to Eight (8) Measurement Heads
Can be connected to one (1) GasFinder3-MCr
Dual Gas Capability
Two (2) Lasers for independent gas analysis
Up to 300m (1,000 ft) Cable Lengths
For connecting to the Measurement Heads
Ease of Integration
3U Enclosure for 19" Server Rack
Provides local indication and user interface
HMI Touchscreen
Provides local indication and user interface
Power Button
Push button with backlit visual indication
USB Accessible Data Storage
Store & access +20 years worth of generated data
Internal Reference Cell
Fail Safe Design + SIL2 Suitable
Diagnostics with no undisclosed failure modes
Essentially Zero Measurement Drift
Laser remains locked on desired absorption line
No Field Calibration + Intervention
Adjustments done autonomously & automatically
+/- 2% of Reading Accuracy
Over full linear range of the absorption line
Power + Communication Options
Power Input + Fuse
120-220 VAC @ 20 Watts with 1.25A Fast Blow Fuse
MODBUS via RS-485
Access to all sample and diagnostic data
Up to Four (4) Analog Modules
Four (4) HART 7 (via 4-20mA) Loops per Module
Up to Eight (8) Relay Modules
Six (6) Voltage Free Dry-Contact Relays per Module
Target Gases
