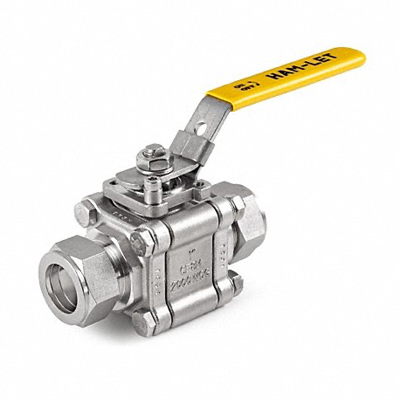

Ham-Let – Ball Valves
UCT’s ball valves provide a complete fluid shutoff solution suitable for diverse industries. These dependable shutoff valves can be tailored to your specific application needs.
Learn more here: https://buy.ham-let.com/products/instrumentation-valves/ball-valves
PRODUCT DESCRIPTION:
GENERAL
The H-500 series is a moderate-pressure instrumentation ball valve for general service and instrumentation panels. The valves offer large ports for high flow, tight shutoff, long-life service and low operating torque. The H-500 series can be used for bi-directional flow, is rated to maximum 3,000 psig (204 bar) and performs as on/off service.
Features
- Low fugitive emissions-Certified for ISO 15848-1:2006 (E)
- Precision investment cast body in CF8M stainless steel
- Precision Investment cast end caps in CF3M stainless steel
- Blow-out proof stem with Belleville washer design for long life stem sealing
- Integrated locking device
- Manual, pneumatic and electric operation
- Variable end connection types and sizes from 1/4” to 2” or 6mm to 50mm
- Stainless steel construction
- Flow coefficient (Cv) from 1.2 to 24.0
- MAWP* 3000 psig (206 barg), 2000 psig (137 barg) for “-FP” option
- MAWT** 450°F (232°C)
- H-500S seat material is modified PTFE as standard
