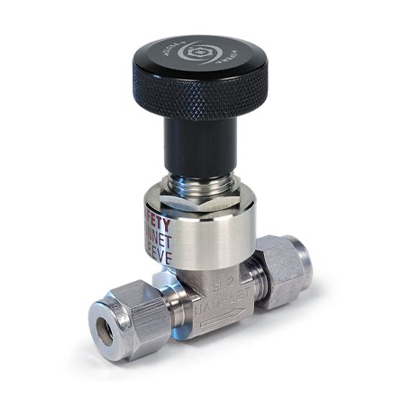

Ham-Let – Metering Ball Valves
$1.00
Their Metering Ball Valve Series offers precise metering for moderate pressure applications, with innovative shut-off capability for complete control from full shut-off to fine regulation. These valves enable accurate flow control in low or high-pressure, as well as low, medium, or high-flow applications.
Learn more here: https://buy.ham-let.com/products/instrumentation-valves/h1300-metering-valves
The H-1300 Series is a moderate-pressure instrumentation flow-regulating needle valve. It is generally used for instrumentation panels, sampling systems and others. The valves are compact in size and structure and offer reliable low and moderate flow regulation with long service life.
H, HF & HXF-1300 Series Features
- Forged-body 316 SSTor brass construction
- Straight and angle Patterns and Panel Mounting
- MAWP* 2000 psig - (137 Barg) for HXF
- MAWP* 1000 psig - (68 Barg) for H, HF
- MAWT** 400°F (204°C)
- Flow coefficients (Cv) from 0.004 to 0.15
- Round and slotted handles with screwdriver slots
- Different end-connection types: LET-LOK® ends , male & female NPT, HTC®, face seal bead
- 1°, 3° and 5° stem taper for required flow control
- Stem with stopper shoulder for maximum life service
Additional information
| Manufacturer | Ham-Let |
|---|---|
| Industry | Chemical and Petrochemical, Food and Beverage, Life Science, Oil and Gas, Power and Energy, Water and Wastewater |
| Segment | Mechanical |
Ham-Let – Metering Ball Valves
Their Metering Ball Valve Series offers precise metering for moderate pressure applications, with innovative shut-off capability for complete control from full shut-off to fine regulation. These valves enable accurate flow control in low or high-pressure, as well as low, medium, or high-flow applications.
Learn more here: https://buy.ham-let.com/products/instrumentation-valves/h1300-metering-valves
PRODUCT DESCRIPTION:
The H-1300 Series is a moderate-pressure instrumentation flow-regulating needle valve. It is generally used for instrumentation panels, sampling systems and others. The valves are compact in size and structure and offer reliable low and moderate flow regulation with long service life.
H, HF & HXF-1300 Series Features
- Forged-body 316 SSTor brass construction
- Straight and angle Patterns and Panel Mounting
- MAWP* 2000 psig - (137 Barg) for HXF
- MAWP* 1000 psig - (68 Barg) for H, HF
- MAWT** 400°F (204°C)
- Flow coefficients (Cv) from 0.004 to 0.15
- Round and slotted handles with screwdriver slots
- Different end-connection types: LET-LOK® ends , male & female NPT, HTC®, face seal bead
- 1°, 3° and 5° stem taper for required flow control
- Stem with stopper shoulder for maximum life service
