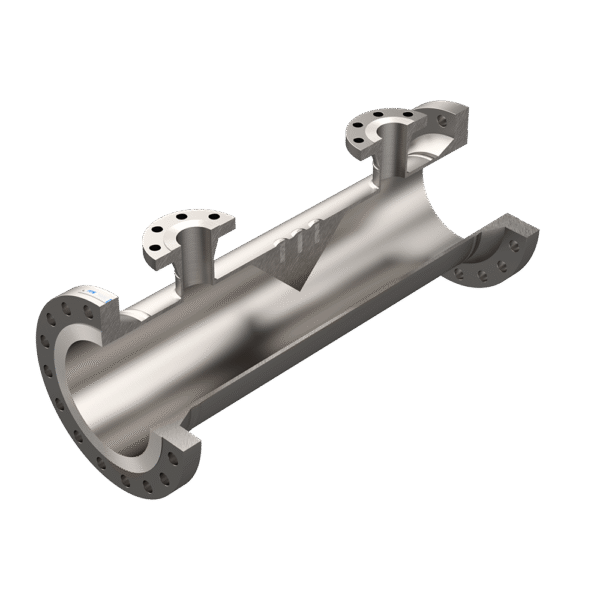

Primary Flow Signal – Wedgetype Flow Meters
$1.00
Wedge flow metering is designed for highly viscous, slurry type, or contaminated line fluid applications, including difficult-to-meter, air entrained liquids, as well as particulate entrained, high viscosity, or slurry solutions. Examples of these applications include: raw sewage, sludge, tar sands, pulp mash, cement, liquid asphalt, and molten sulfur.
Wedgetype Flow Meter (WM)
- +/- 4.00% Uncalibrated Uncertainty
- Dirty liquids and Slurries
- Line size: 1/2 to 30 inches
- Head loss % of Differential: 25 to 60 percent
- Recommended pipe Reynolds number: Must be greater than 500 for basic accuracy
Wedge-X Flow Meter (WX)
- +/- 4.00% Uncalibrated Uncertainty
- Integral Manifold, Replaceable Wedge
- Line size: 2 inches
- Head loss % of Differential: 25 to 60 percent
- Recommended pipe Reynolds number: Must be greater than 5000 for basic accuracy
Additional information
| Manufacturer | Primary Flow Signal |
|---|---|
| Industry | Chemical and Petrochemical, Food and Beverage, Life Science, Oil and Gas, Power and Energy, Water and Wastewater |
| Segment | Mechanical |
Primary Flow Signal – Wedgetype Flow Meters
Wedge flow metering is designed for highly viscous, slurry type, or contaminated line fluid applications, including difficult-to-meter, air entrained liquids, as well as particulate entrained, high viscosity, or slurry solutions. Examples of these applications include: raw sewage, sludge, tar sands, pulp mash, cement, liquid asphalt, and molten sulfur.
PRODUCT DESCRIPTION:
Wedgetype Flow Meter (WM)
- +/- 4.00% Uncalibrated Uncertainty
- Dirty liquids and Slurries
- Line size: 1/2 to 30 inches
- Head loss % of Differential: 25 to 60 percent
- Recommended pipe Reynolds number: Must be greater than 500 for basic accuracy
Wedge-X Flow Meter (WX)
- +/- 4.00% Uncalibrated Uncertainty
- Integral Manifold, Replaceable Wedge
- Line size: 2 inches
- Head loss % of Differential: 25 to 60 percent
- Recommended pipe Reynolds number: Must be greater than 5000 for basic accuracy
