Protected: AGI – M30 Series

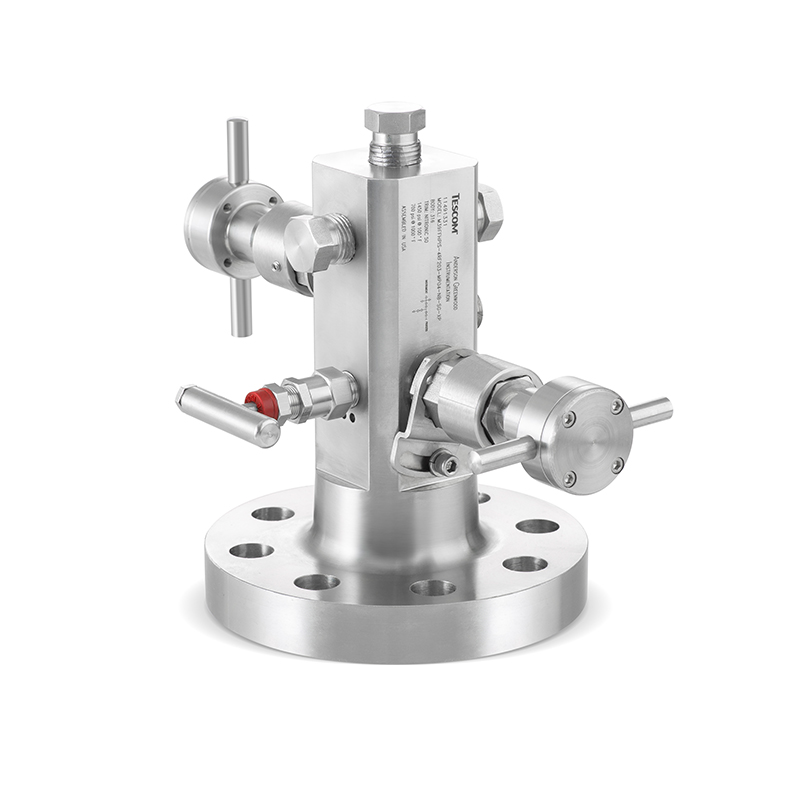

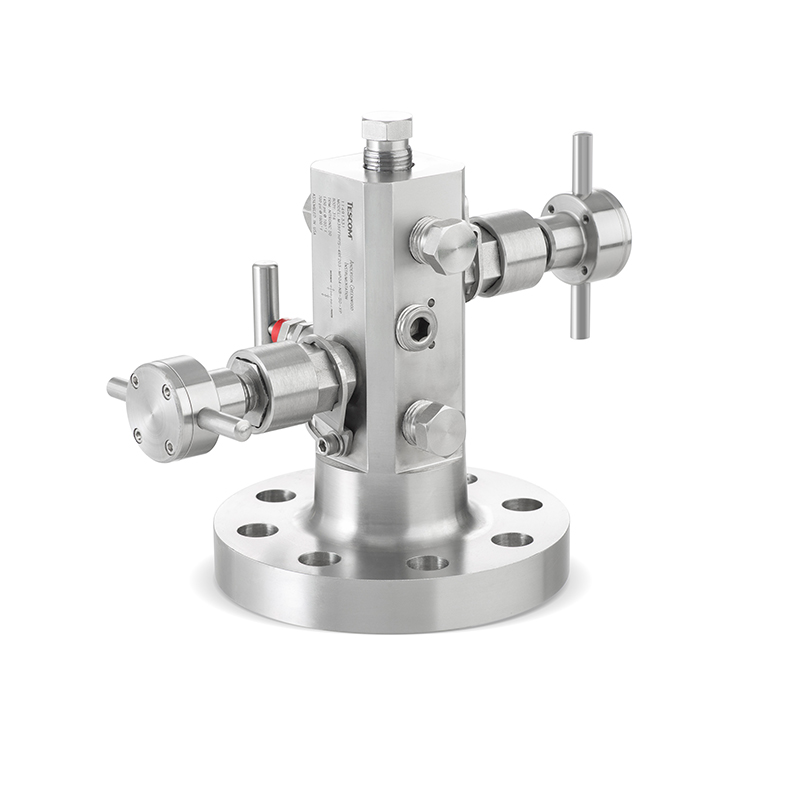

The AGI Root valves are ideal for Single Block (M37), Block and Bleed (M38), Double Block and Bleed (M39), as well as Bleed-Block (M35VB), and finally Block-Block (M36). This series of valves provide the same application service as traditional gate and globe valves, but with Instrumentation “bubble tight” service assemble of multiple valves in one body. All include the large 3/8″ primary bore orifice.
PRODUCT DESCRIPTION:
BENEFITS:
- Meets: ASME B16.34 (Pressure Containing Parts), ASME B16.5 (Flange Dimensions), BS 6755 Part 2 Fire Tested, MSS-SP-61 (Valve Testing). *Please see catalog for other met requirements
- Compact Design: DBB Approx 12“ long.
- Non-rotating ball-ended stems for low torque, bubble-tight sealing cababilities. Nitrided Nitronic Stems and Ceramic Ball Stems as standard to meet the toughest applications in heat and abrasion, including high quartz content processes.
- Adjustable Graphoil Packing for long life and in-line adjustments.
- All bonnets and flow paths integral to a one piece body, including forged flanged bodies. No possibility of leak paths through connection of components and no welds.
- Bonnet Lock Plate: to prevent accidental removal of bonnets
- Locking bonnet packing adjustment collar
- Blow-out proof stems
