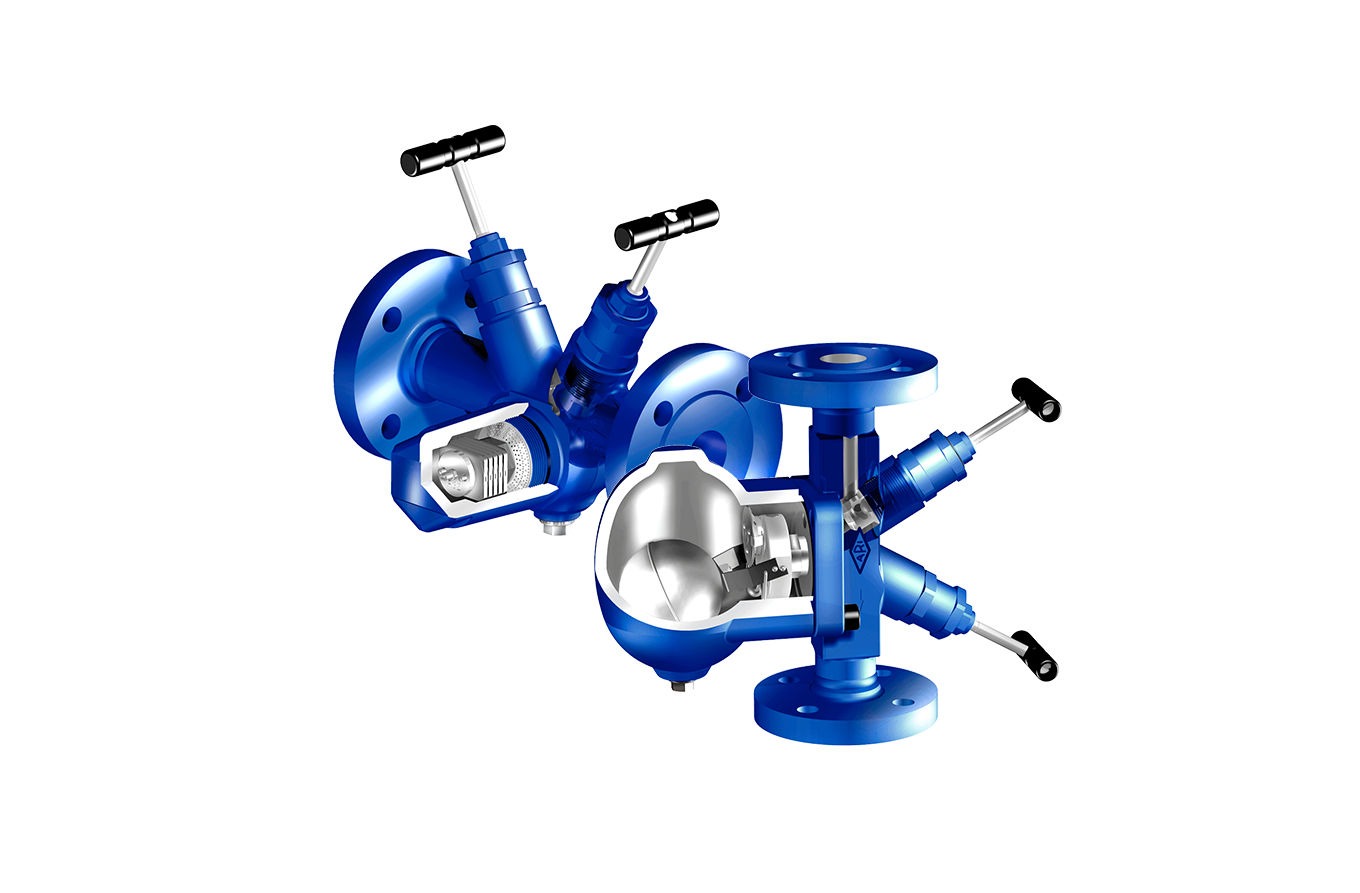

ARI - CONA® All-in-One Steam Traps with Multi-valving Technology

ARI – CONA® All-in-One Steam Traps with Multi-valving Technology

Integrated system includes a steam trap, stop valve, strainer, check valve, and drain valve, for up to an 80% reduction in pipe connections! Available in trap technologies: CONA® SC float & thermostatic, CONA® TD thermodynamic disc, CONA® B bimetallic, and the CONA® M thermostatic steam trap.

REQUEST A QUOTE

PRODUCT DESCRIPTION:

Compact condensate discharge in multi-valving system! Now also with DIN and ANSI face-to-face dimensions!

  • Economical through integrated stop valves (eliminates two stop valves) – patented design (DE 10 2006 041 132).
  • Variable, modular design guarantees easy servicing: Replacement of the controller or conversion to other steam trap types without completely disturbing the pipework; replacement of integrated valves by changing the valve bonnet.
  • Economical through time and cost savings because piping is reduced to a minimum (the number of pipe connections can be reduced from as many as twelve to just one or two).
  • Integrated drain valve provides optimized safety
  • Manufactured from strong materials for maximum durability, robustness and resistance to water hammer.
  • Multifunctional because the system features integrated non-return protection.
  • Flexible in use through variable mounting position (horizontal or vertical).
  • Gasketless design guarantees an extended lifetime (metal sealing – CONA® B/M/TD).
  • Connection types: New from ARI! Now also available in DIN EN 26554 (face-to-face dimensions).
  • Choice of butt weld ends / socket weld ends / screwed sockets (length acc. to company standard or as specified by customer)
