Ham-Let - Toggle Valves (H-1200)

Ham-Let – Toggle Valves (H-1200)

$1.00

Vector CAG - Ham-Let Logo

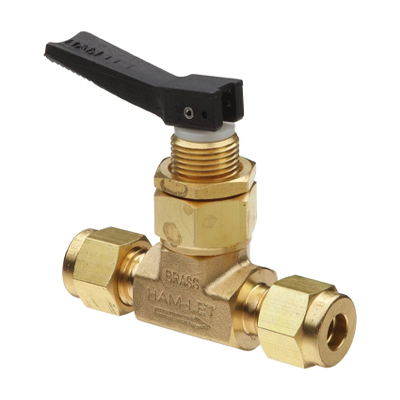

The H-1200 Series standard toggle valve is a compact design for normally closed and quick on/off service. Moving the handle 90 degrees upwards opens the valve to full flow and stops it firmly in the open position. Shifting the handle position downwards shuts off the valve by spring return. The PTFE soft seat at the tip of the stem provides a positive repetitive seal.

Learn more here: https://buy.ham-let.com/products/instrumentation-valves/h1200-toggle-valves

REQUEST A QUOTE
Categories: ,

GENERAL

The H-1200 Series standard toggle valve is a compact design for normally closed and quick on/off service. Moving the handle 90 degrees upwards opens the valve to full flow and stops it firmly in the open position. Shifting the handle position downwards shuts off the valve by spring return. The PTFE soft seat at the tip of the stem provides a positive repetitive seal.

FEATURES

  • Compact rugged design
  • Stainless Steel and Brass construction
  • Panel mountable
  • Quick On/Off service
  • Straight and angle patterns available
  • Sizes: 1/8" & 1/4"
  • LET-LOK®, male and female NPT ends
  • Pressure rating up to 300 psig (20 Bar) at 20°C (70°F)
  • Temperature rating: -20°F to 200°F (-28°C to 93°C)
  • Flow coefficient (Cv) 0.11 to 0.2
  • Colored nylon handles

Additional information

Manufacturer

Ham-Let
Industry

Chemical and Petrochemical, Food and Beverage, Life Science, Oil and Gas, Power and Energy, Water and Wastewater
Segment

Mechanical
