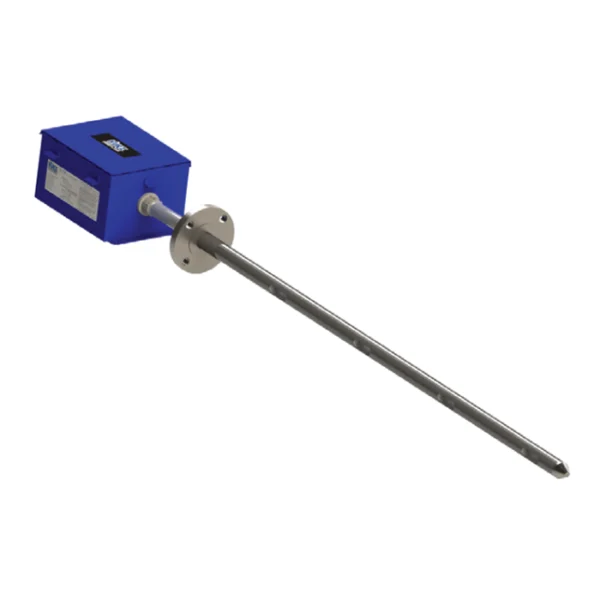

Vector CAG - Kurz-KBAR-2000B-Intercontrol

Kurz Instruments – Multi-Point Thermal Insertion Flow Meter

Kurz Instruments Logo

Like the single-point meters Kurz provides, an alternative multi-point insertion flow meter is available that can measure wet stacks, condensing gas environments, and biogas applications. This multi-point meter, also known as the Kurz K-BAR, processes the dry flow signal independent of the effects of moisture in the process gas stream. K-BAR 200B-WGF flow meters have effectively no impact on the flow stream, proven high accuracy, and are highly economical for both initial and maintenance cost.

Kurz offers up to four sensors for measurement redundancy and to ensure accuracy. Its rugged design withstands the high stress and high vibrations found in large industrial stacks and ducts that commonly have wide-ranging velocity and temperature profiles. The K-BAR 2000B supports process temperatures up to 260°C or up to 500°C.

REQUEST A QUOTE

PRODUCT DESCRIPTION:

K‑BAR 2000B Multi‑Point Insertion Flow Meter

  • Up to 4 Sensors per Probe: Provides flow and temperature readings at multiple positions, delivering accurate spatial averaging in non-homogeneous duct or stack profiles
  • Fast Dual Metal‑Clad Sensors (FD2): Combine gas velocity and temperature measurement per point with exceptional precision (±0.025%) and high repeatability
  • High Temperature Ratings: Supports up to 260 °C standard, with options up to 500 °C—perfect for industrial stacks and flue gases
  • Robust Construction: All-welded Alloy C-276 sensors, pressure/temperature compensation, and resistance to dirty/corrosive environments ensure long-term reliability
  • Rapid Response & VTM Calibration: Fast detection of flow/temperature changes with Velocity‑Temperature Mapping for high accuracy over wide conditions
  • EMI/RFI Protection & Non‑Incendive Safety: Meets industrial electronic disturbance standards and supports safe operation in many environments
  • Optional Air Purge Cleaning: Maintains performance in moisture or particulates without de-rating readings

Series 155 Mass Flow Computer

  • Supports up to 22 Sensor Inputs: Manage multiple multi-point probes or single-point sensors with redundant or summed flow calculation
  • Smart Flow Algorithms: Features automatic sensor fault detection, re-averaging, multi-point calibration, and electronic zero/span drift checks for reliable operation
  • Comprehensive I/O: Offers up to eight 4–20 mA or 0–5 V outputs, 5 A alarm relays, RS‑232/RS‑485, and totalizing—ideal for system control and SCADA connectivity
  • Built‑in Display & Controls: 2‑line LCD display with 20‑button keypad, time-stamping (Y2K‑compliant), and user-friendly menu with help screens
  • Modular Meter Configuration: Define “Meters” as individual probes or groups and configure redundancy, sum/difference calculations, and customized flow channels
