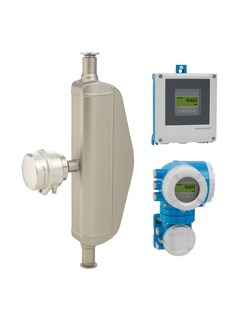

Endress+Hauser – Proline Promass P 500 Coriolis Flowmeter

Field of application

Promass P is the specialist for sterile processes in the life sciences industry. It is dedicated to biotech applications requiring highest compliance with guidelines and regulations. With its innovative remote transmitter Promass P 500 maximizes installation flexibility and operational safety in demanding environments. Heartbeat Technology ensures compliance and process safety at all times.

• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Dedicated to applications under sterile conditions in the life sciences industry.

Device properties

• ASME BPE, 3-A and EHEDG conform & low delta ferrite
• Electropolished measuring tube in 1.4435 (316L)
• Fast recovery from CIP/SIP
• Remote version with up to 4 I/Os; hygienic sensor connection housing with IP69
• Backlit display with touch control and WLAN access
• Standard cable between sensor and transmitter

Benefits

• Highest process quality – fully compliant to industry requirements
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
• Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses
• Reduced complexity and variety – freely configurable I/O functionality
• Integrated verification – Heartbeat Technology
